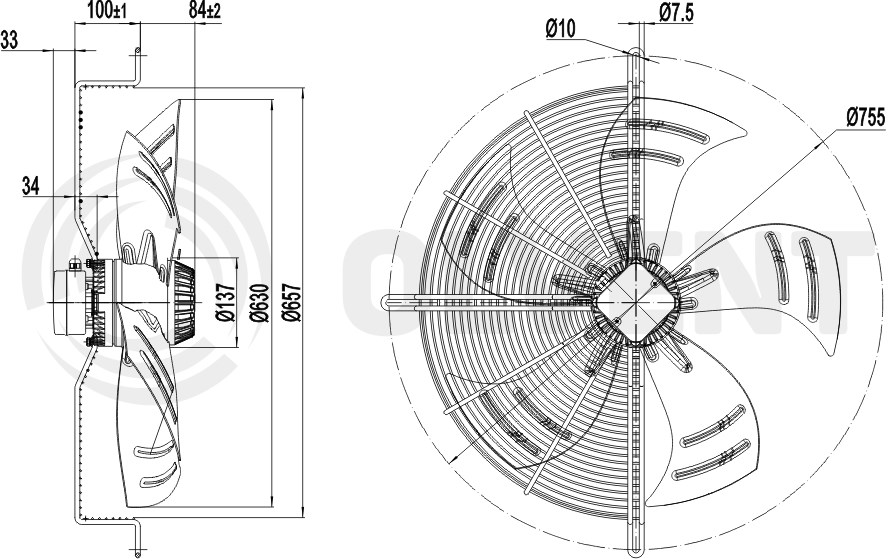

Fan YWF.A4T-630S-5DIIIA00 without mounting plate

Airflow direction:
Suction
Diameter:
630 mm
Voltage:
400 V
Frequency:
50 Hz
Air flow:
10800 m3/h
Speed:
1350 min-1
Input power:
650 W
Current:
1,45 A
Sound pressure level:
73 dB(A)
Internal thermal protection :
150±5 ºC
Protection class:
54 IP
Compliance with directive ERP 2015:
Yes
General efficiency:
32,6 ηstatA%
Efficiency ratio:
40,1
Net weight:
15,4 kg
Gross weight:
17,5 kg
Dimensions of package:
67 x 67 x 25,5 cm

Product description YWF.A4T630S-5DIIIA00
