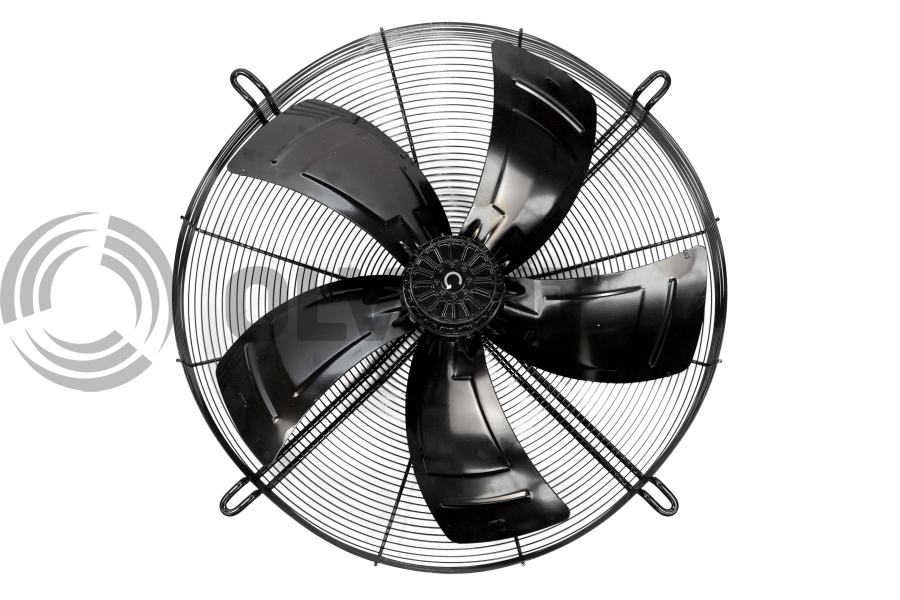

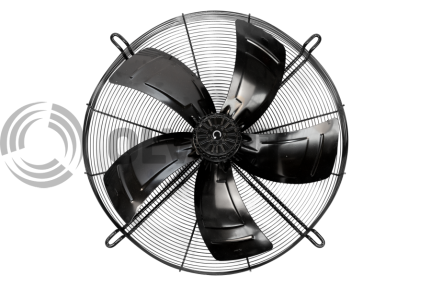

Fan YWF6D-910S-180/100-G without mounting plate
- Airflow direction:
- Suction
- Diameter:
- 910 mm
- Voltage:
- 380 V
- Frequency:
- 50 Hz
- Air flow:
- Δ=24101l Y=20836 m3/h
- Speed:
- Δ=910 Y=740 min-1
- Input power:
- Δ=1800 Y=1400 W
- Current:
- Δ=3.75 Y=2.35 A
- Sound pressure level:
- Δ=84 Y=78 dB(A)
- Internal thermal protection :
- 150±5 ºC
- Protection class:
- IP55 IP
- Net weight:
- 50 kg
- Gross weight:
- 55 kg
- Dimensions of package:
- 100 x 100 x 32 cm
Opis produktu YWF6D-910S-180/100-G
